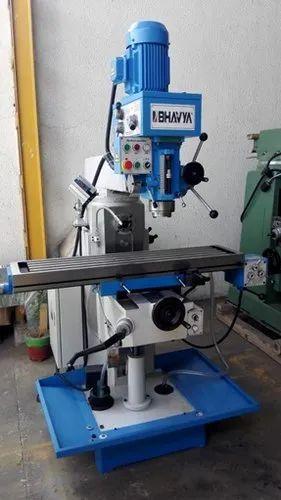

MODELADM1228TABLETable size1200X280Max. load of Table200MACHINING RANGETable Longitudinal travel(manual/auto)600Table Cross travel (manual)260Table Vertical travel(manual)300MAIN SPINDLE Spindle taperISO40Spindle speed /step -- Vertical90-2000/9stepsSpindle speed /step Horizontal38-1310/12stepsMax. drilling dia.30Max. end milling width100Max. vertical milling Dia.25Max. tapping dia. M16Quill travel (manual & auto both)120Swivel angle of headstock45Horizontal spindle axis to table surface0-300FEEDS: Longitudinal/cross feed24-720/8stepsCross feed / Vertical feedManualVertical/step-Spindle quill feedManual + AutoPOWER: Main motors ( Vertical + Horizontal Head)2.2KW (V Drive) & 2.2 Kw(H Drive)(X-Axis) is motorized by 1 gear box feed motor0.37 kWCoolant motor0.04 kWOTHERSOverall dimension166x145x215 cmN/W, G/W1300/1400 kg.
Capacity - 1200mm X 280mm
Brand - BHAVYA
Automation Grade - Manual
Machine Type - DRILLING & MILLING
Table Size - 1200mm X 280mm
Model Name/Number - ADM1228
