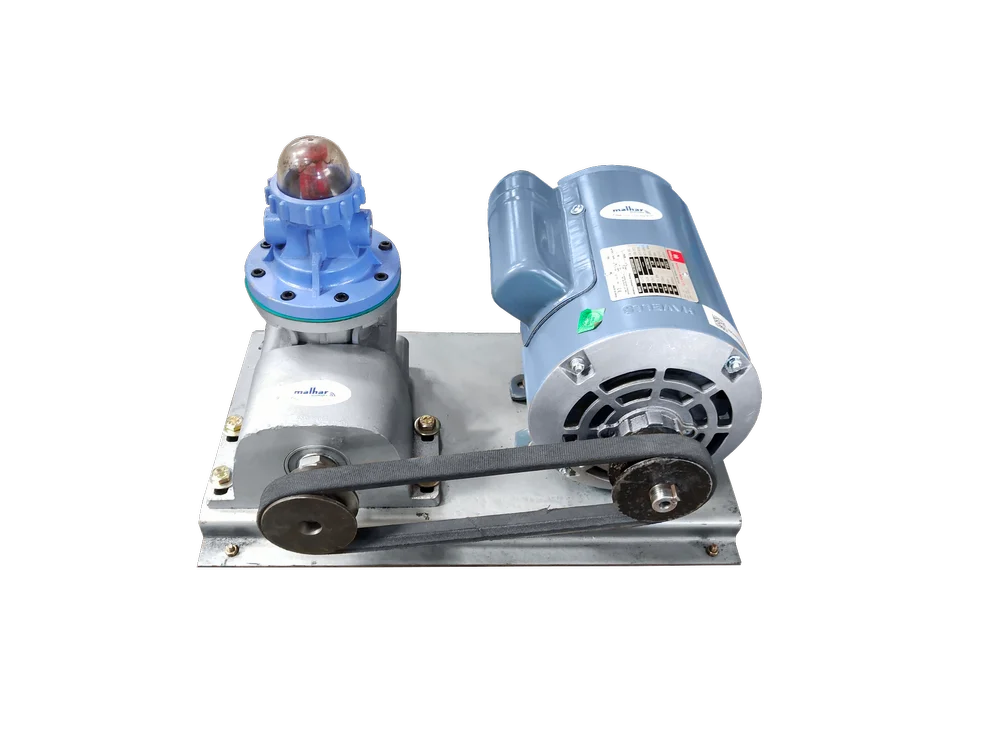

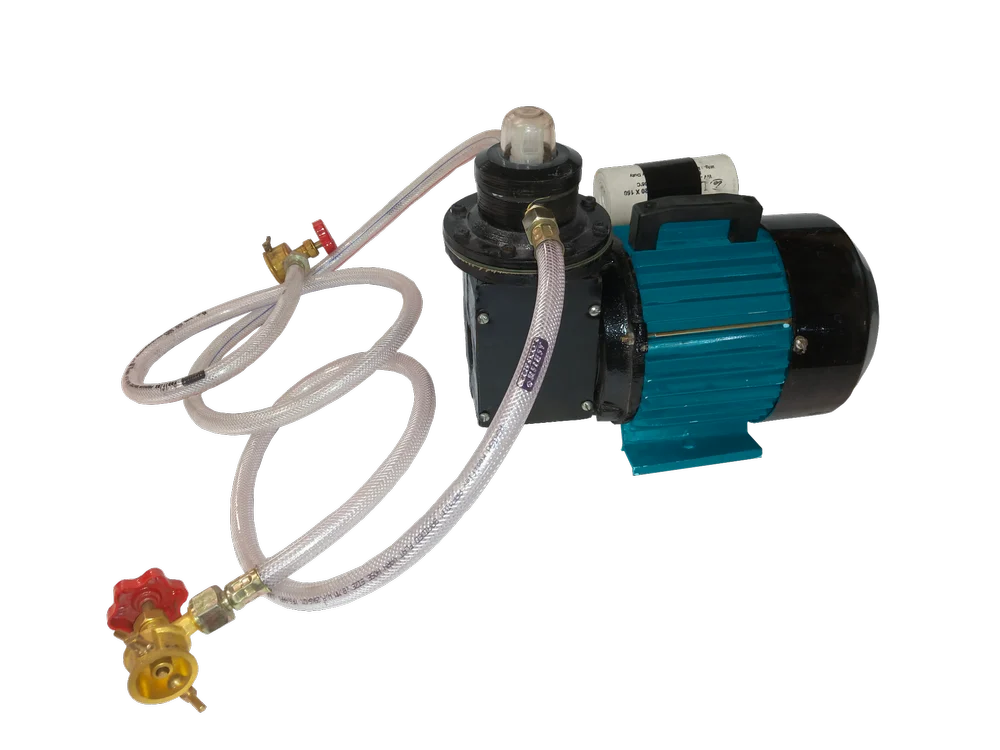

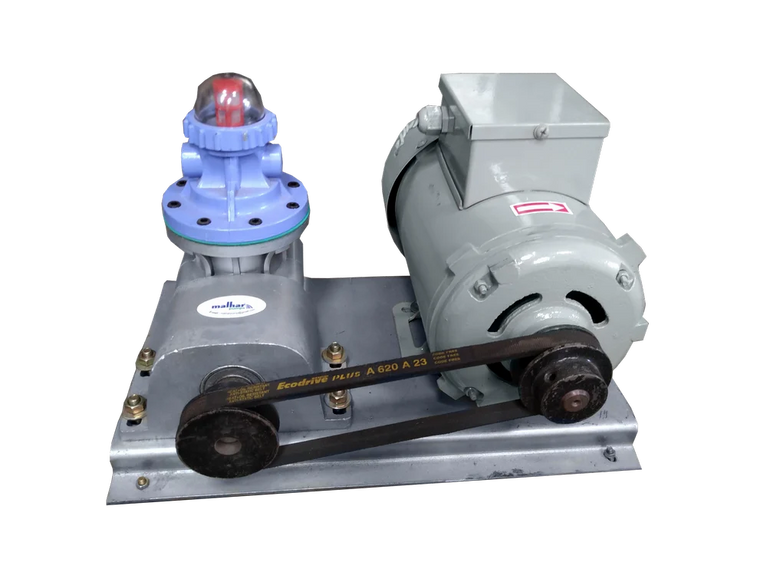

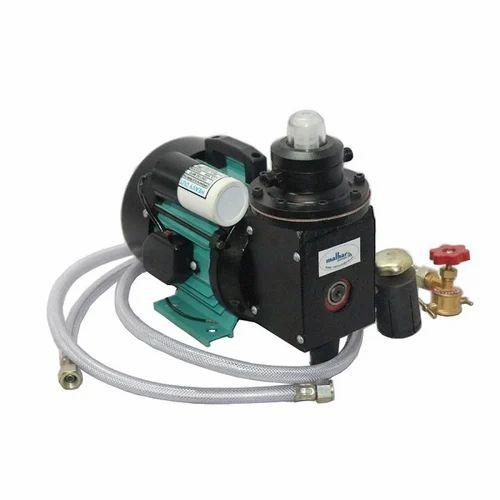

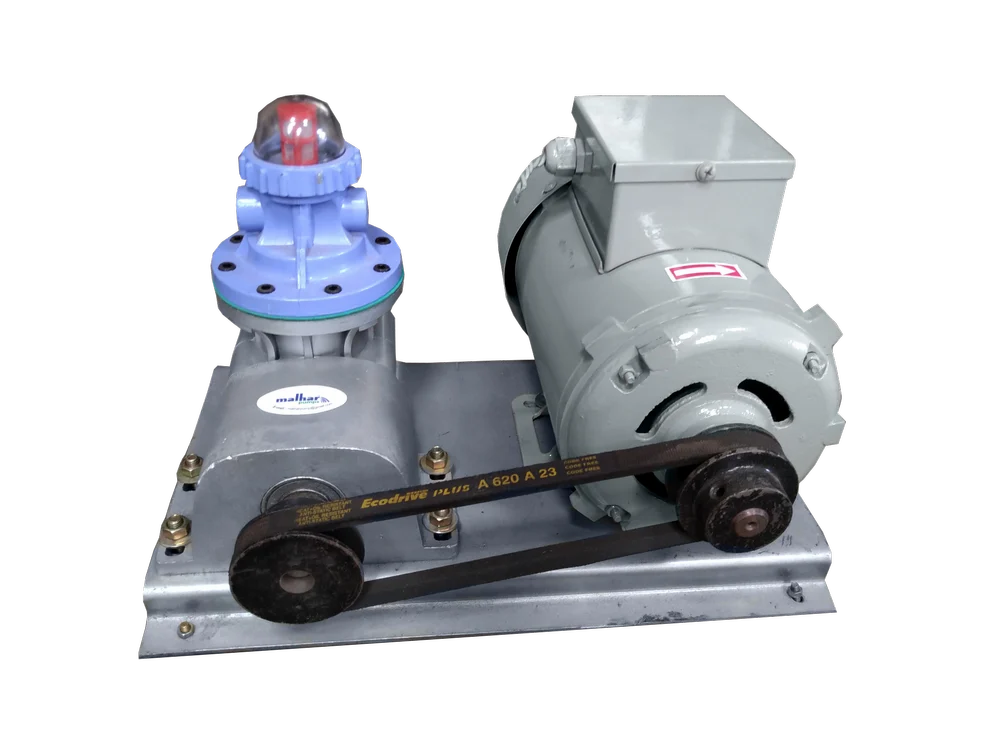

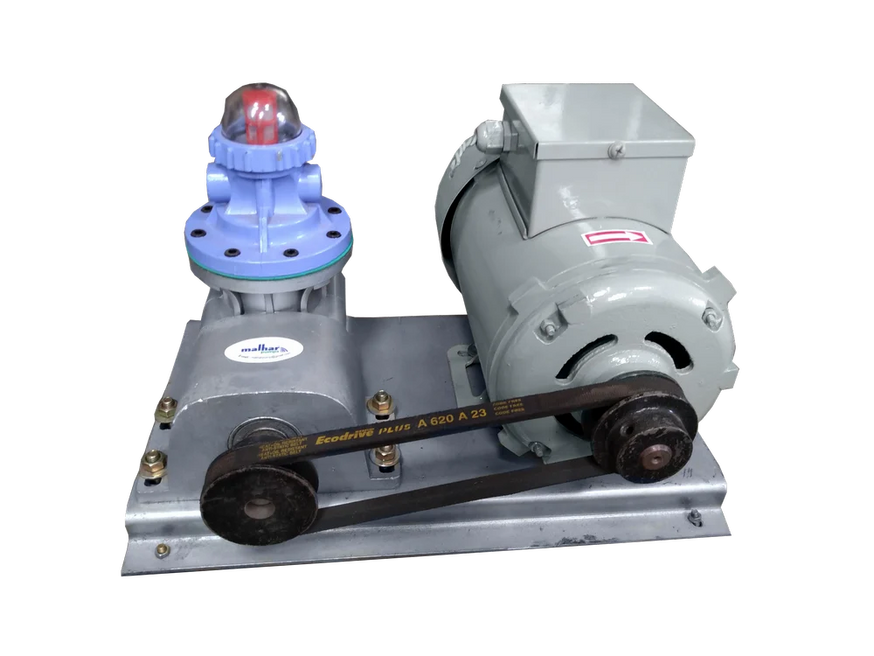

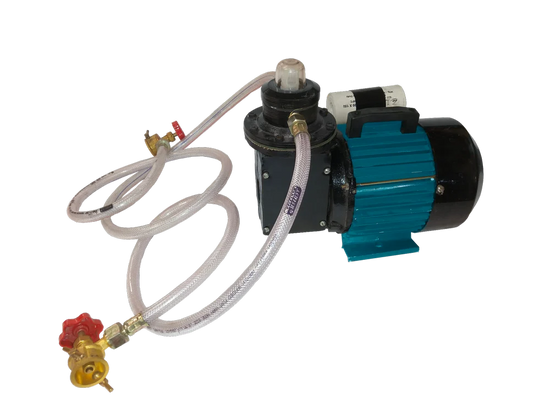

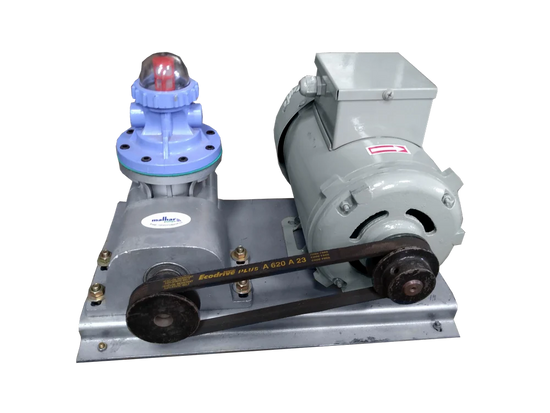

AC LPG PUMP TECHANICAL SPECIFICATIONS:- Pump Type:- AC (Electric supply) LPG Diaphragm Pump, Pump Make:- “MALHAR” Pump Model:- MD-AC-1 , Suction x Delivery Sizes:- ¼ ” x ¼ ”, Pump Capacity:- 15 kg/7 Minute I. E 2.14 kg/Minute, Maximum Pressure:- 15 kg/cm2, Pump Weight:- 16 kg approx Material Of Construction:- Standard Cast Iron Construction, AC Motor Specifications:- 1 hp x 1450 rpm, Non Flame Proof Motor Totally enclosed Fan cooled Squirrel cage Induction Motors Horizontal Foot mounted B3 Construction, Continuously rated S1 Duty suitable for single phase, 220 volts, 50 Hz, AC Supply (110 volts or 60 Hz Available on request) with ambient 45ºc & class “F” Insulation. SCOPE OF SUPPLY:- Ac lpg Pump With Suction and Delivery Pipes with Valve, Regulator and extra Diaphragm. Additional Information: • Production Capacity: AHMEDABAD • Delivery Time: ready stock • Packaging Details: export worthy
Voltage - 220v
Minimum Order Quantity - 1 Piece
Model Name/Number - mdac-1
Automation Grade - Manual
Pressure - 15kg
Usage/Application - lpg gas transfer
Fuel Type - lpg
Country of Origin - Made in India
Max Flow Rate - 15kg
