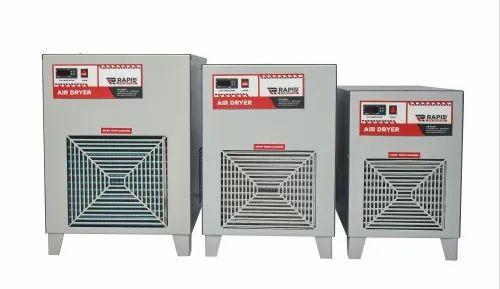

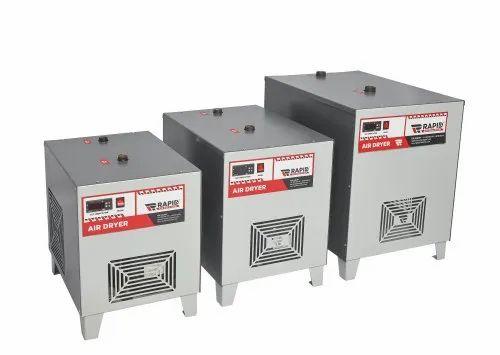

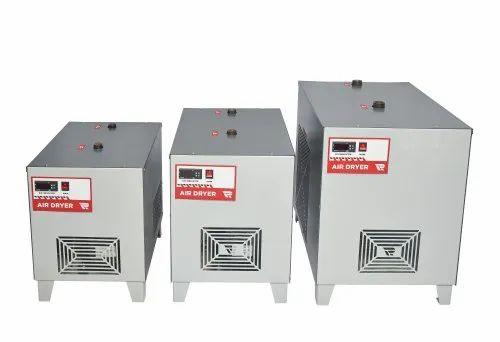

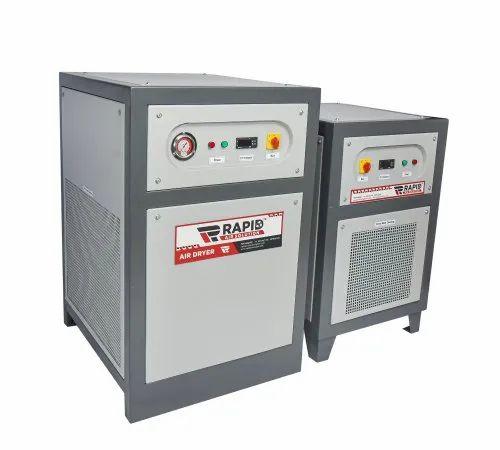

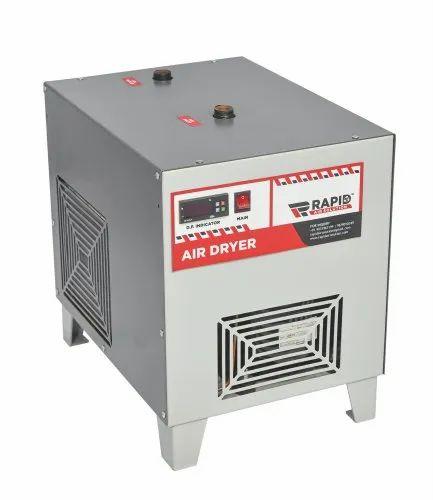

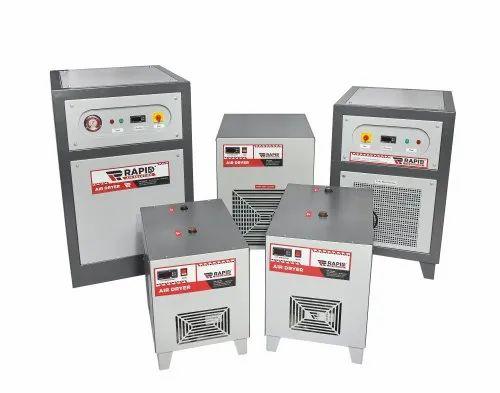

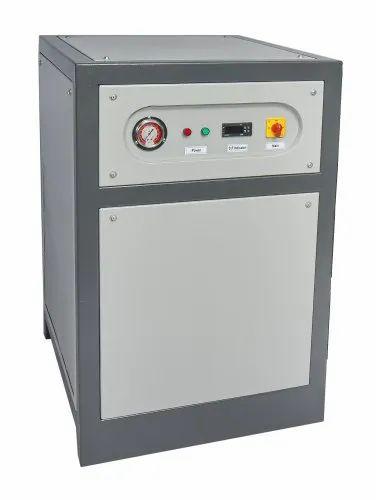

We 300CFM Refrigerated Air Dryer offers a low-cost way to remove water from compressed air, by installing a refrigerated compressed air dryer. We manufacturer and supply the optimum quality of Energy efficient design, consistent performance and low maintenance.
Condenser Type - Air Cooled
Condenser Size - 20"X20"X4R
Minimum Ambient Temperature - 2 DegreeC to 5 DegreeC
Country of Origin - Made in India
Normal Inlet Temperature - 45 Degree C
D.P. Indicator - LCD Display
Drying Capacity - 300CFM
Phase - Three Phase
Refrigerant Compressor - CR-22 by Emerson Copeland
Maximum Ambient Temperature - 45 Degree C
Brand - Rapid
Operating Voltage - 440V AC
Frequency - 50Hz
Evaporator - Tube and Tube Coil/ Shell and Tube Coil
Maximum Operation Pressure - 12 kg/cm2 (170psi)
Fan Type - 16" Axial Fan
Maximum Inlet Temperature - 55 Degree C
Normal Ambient Temperature - 40 Degree C
Refrigerant Type - R22
Auto Drain - Digital Auto Drain Valve Inbuilt
Normal Operation Pressure - 7 kg/cm2 (100psi)
