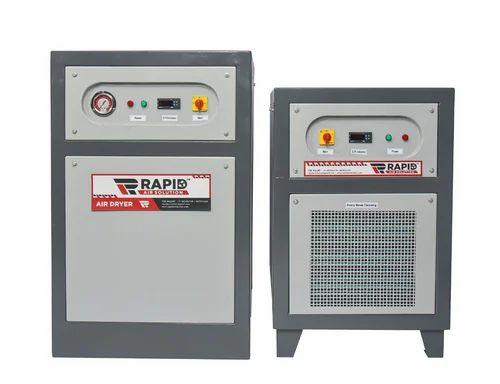

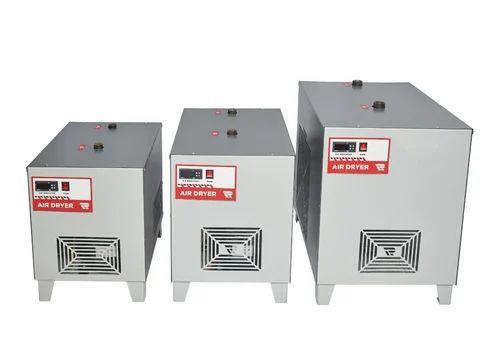

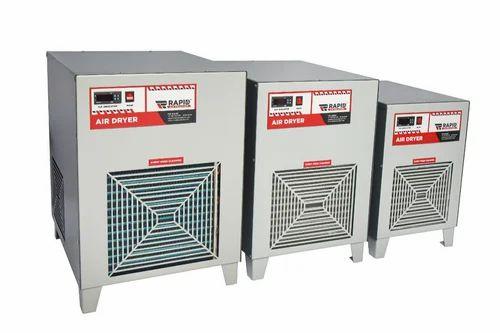

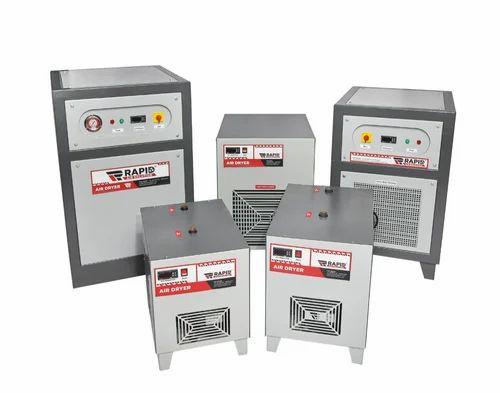

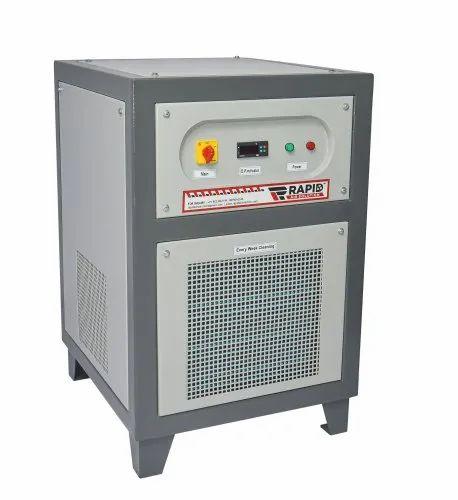

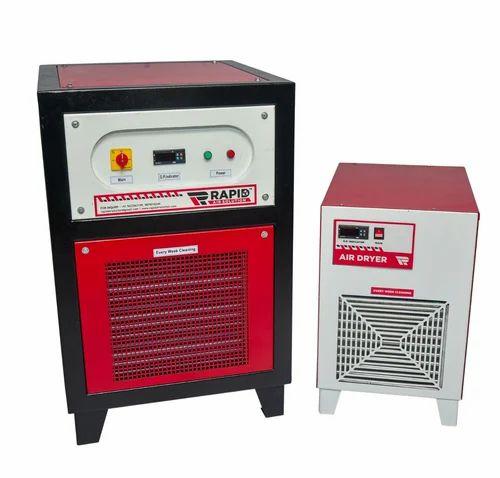

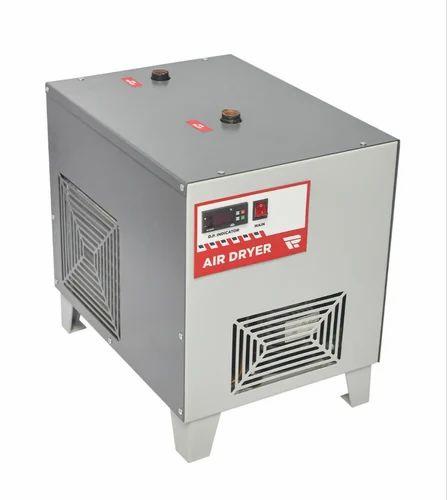

We 200CFM Compressed Air Dryers offers a low-cost way to remove water from compressed air, by installing a refrigerated compressed air dryer. We manufacturer and supply the optimum quality of Refrigerator Air Dryer. Energy efficient design, consistent performance and low maintenance.
Maximum Pressure - 10 bar
Condenser Type - Air Cooled
D.P. Indicator - LCD Display
Condenser Size - 18"X22"X4R
Minimum Ambient Temperature - 2 Deg C and available upto to 5 DegreeC
Country of Origin - Made in India
Drying Capacity - 200CFM
Phase - Single Phase
Refrigerant Compressor - CR-22 by Emerson Copeland
Maximum Ambient Temperature - 45 Deg C
Brand - Rapid
Usage/Application - Pneumatic Operated Machines
Inlet Temperature Maximum - 55 Dec g
Inlet Temperature Normal - 45 Deg C
Evaporator - Tube,Tube Coil,Shell
Maximum Operation Pressure - 12 Kg/cm2 (170psi)
Fan Type - 16" Axial Fan
Dryer Type - Refrigeration Dryer
Ambient Temperature Normal - 40 Deg C
Auto Drain - Digital Auto Drain Valve Inbuit
Automation Grade - Automatic
Normal Operation Pressure - 7 Kg/cm2 (100psi)
