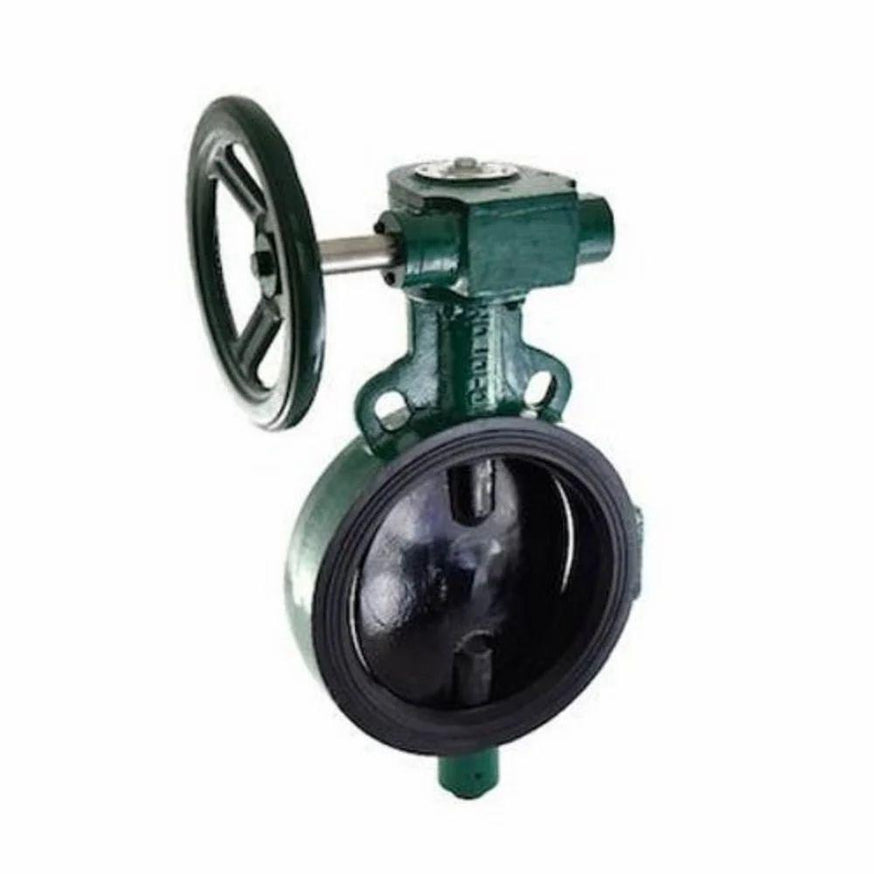

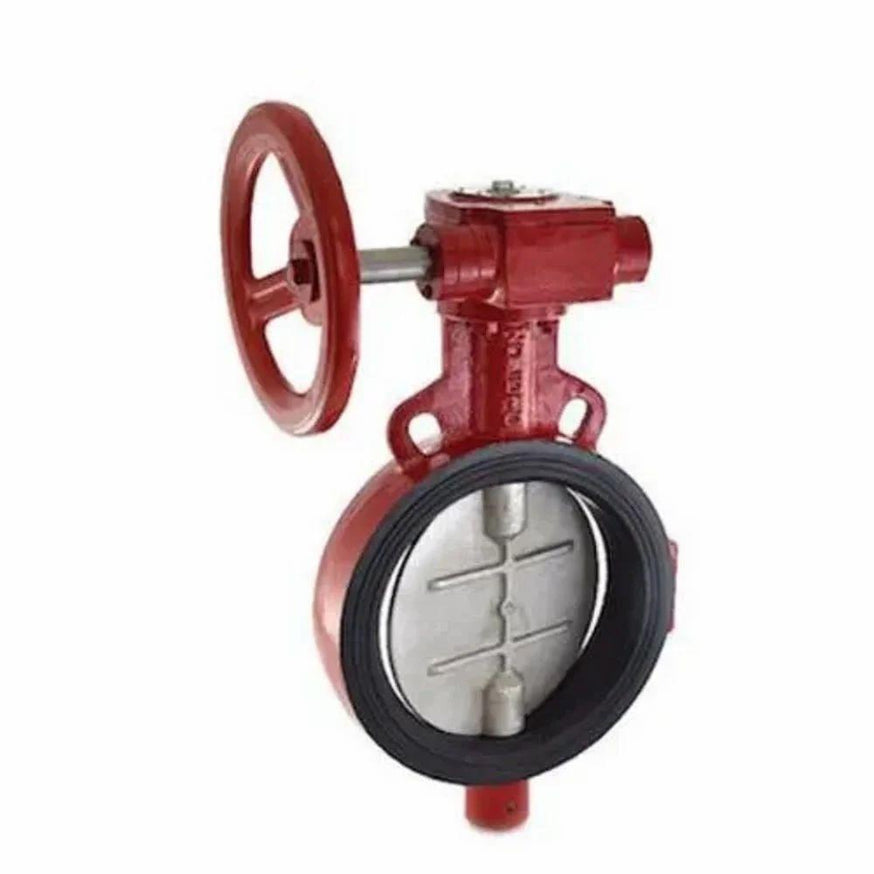

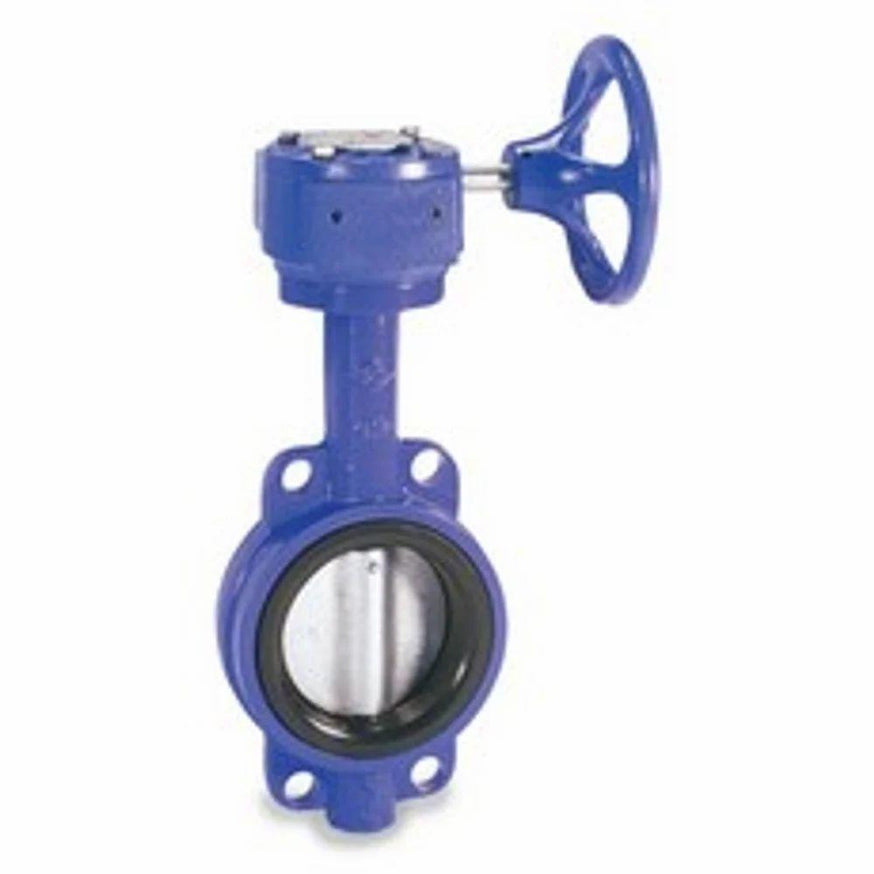

Salient Features: • Design Standard IS 13095 / BS EN 593 (BS 5155). • Wafer Type. • Gear Operated. • S. G Iron construction. • Stainless Steel (CF8 / CF8M*) Disc which is accurately guided between the two stems. • Integrally moulded rubber lining (EPDM / Nitrile / Neoprene* / Viton* / Silicon*) as per requirement which provides seating to the valve disc, as a primary seal to the stem and gasket joint with matching pipe flanges. • Two Piece Stem design which is precisely guided between the PTFE / Bronze bushes. • Compatible to sandwich between flanges as per BS 10 Table D, E, F, H, DIN, PN 10, PN 16, PN 25, PN 40, ASA 150, ASA 300, IS 778, IS 6392 Table 17 and IS 1538.
Brand - Zoloto
Operator - Disc Gear Operated
Size - 200 MM
Pressure - 1.6 MPa
Model Name/Number - 1078C
Working Temperature - 90 Degree C (Max)
