High performance machine with High feeding speed up to 18 m/min gives more production. Pre-Milling unit with??diamond milling cutter??for chip free glue joints. Easy accessible, user friendly Smart Touch PLC control panel.??The Corner rounding unit is controlled from the control panel, with the option of choosing the shape of panel. Motorized up-down movement??of pressure beam for easy thickness setting. Safety air tank provision for non-dropping of air during process. High frequency motors sliding on??heavy prismatic guide ways??for perfect finishing with trouble free performance. Automatic lubrication system circulates lubrication to the required parts of the machine, ensures efficient operation and increase life of parts. Glue spreading roller provides precise & consistent glue application. Perfect adhesion to the applied edge with heavy duty pressure rollers. Robust feed chain & conveyor system with heavy duty gearbox for effective pressure on panels. All electronic & pneumatic parts are from well-known international brands. Low maintenance m/c, easy available cost effective spares, best after sales service support. Additional Information: • Item Code: optimusoptidrill2.3 • Production Capacity: Readily avilable • Delivery Time: 10 to 15 days • Packaging Details: Well packed with polythene Packing

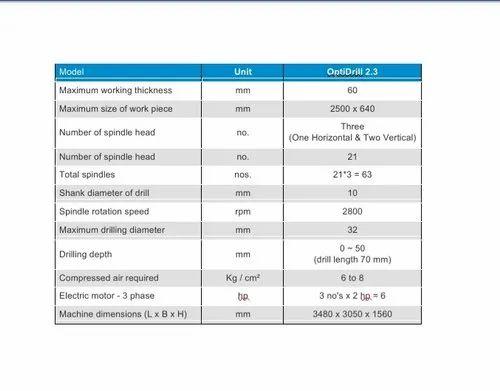

Max.Working Thickness - 60
electric motor -3 phase - 3 no's*2 hp = 6
Power Consumption - 6 hp
Boring Size of Work Piece - 2500*640
Machine dimensions - 3480*3050*1560
Max. boring size of work piece - 2500*640
Shank Dia of drill - 10
Number of spindle head - 21
Country of Origin - Made in India
Drilling Depth - 0-50 (Drill length 70 mm)
spindle rotation speed - 2800
Shank diameter of drill - 10.0
Max.drilling diameter - 32
compressed air requirement - 6 to 8
Minimum Order Quantity - 1 Piece
Voltage - 415 v
Total Spindles - 21*3=63
