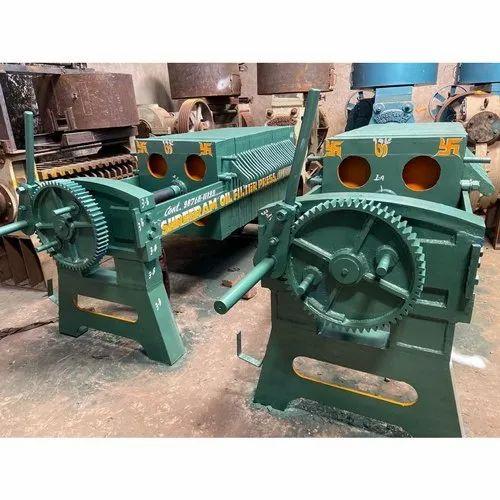

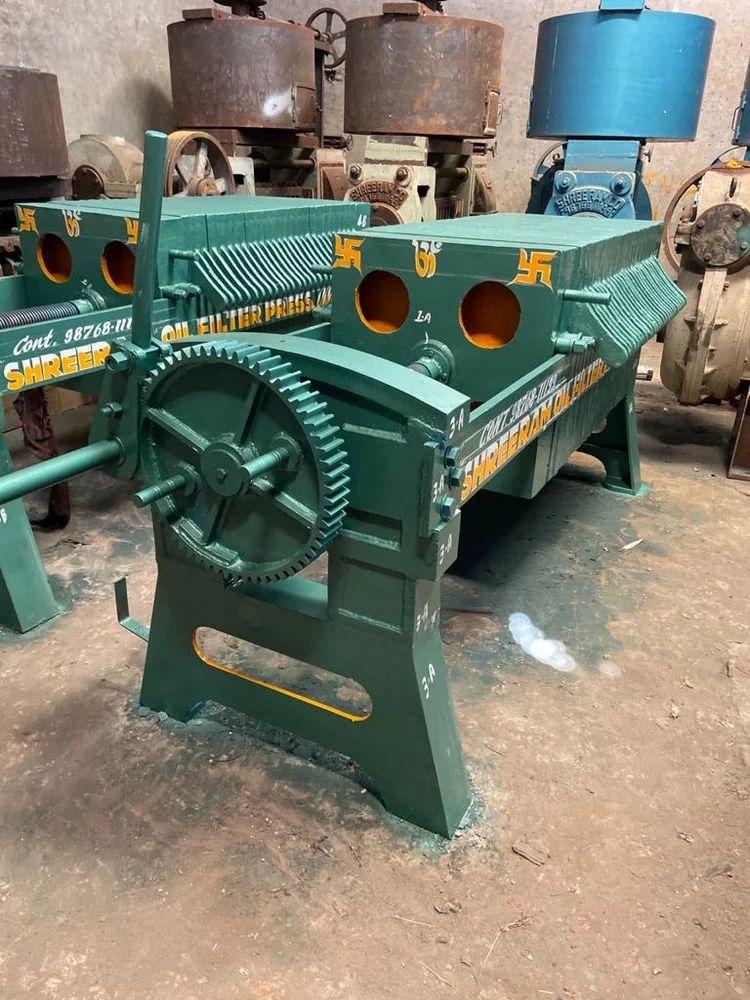

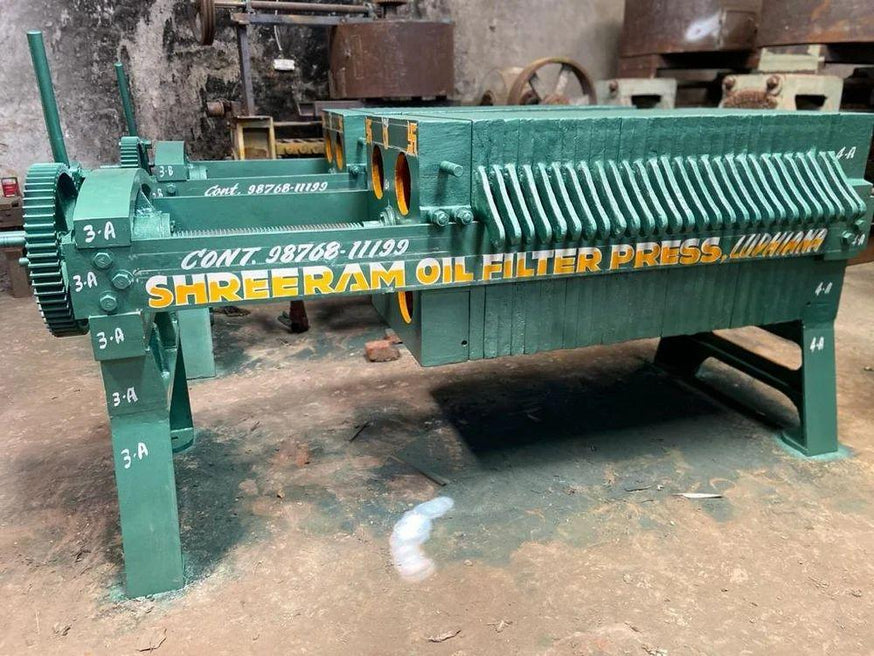

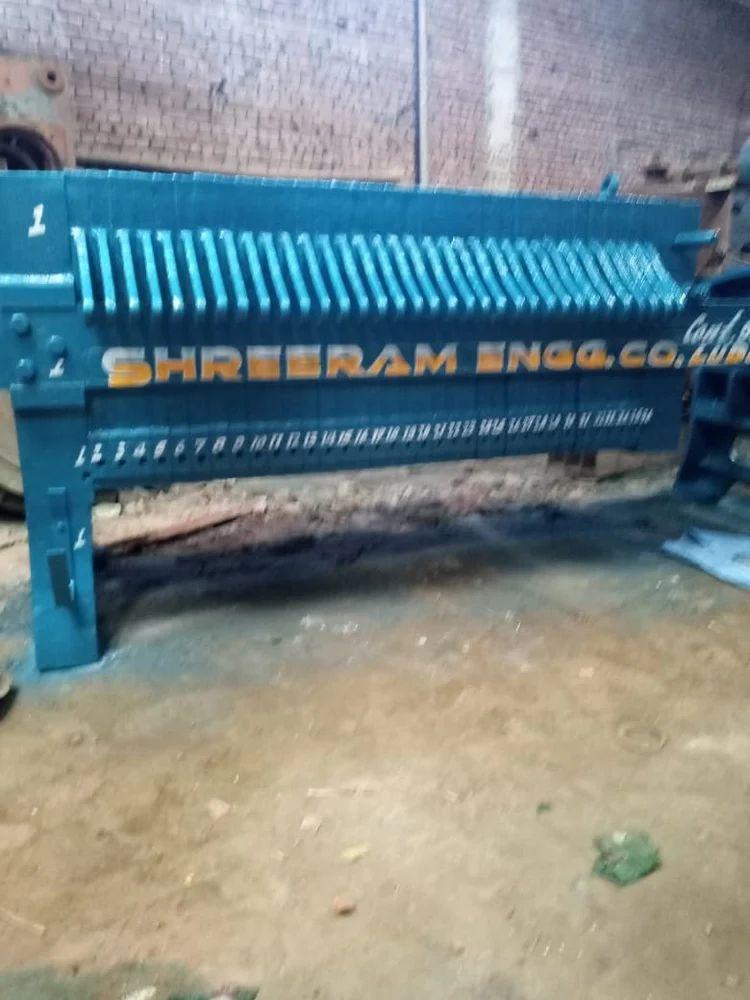

Features of Oil Filter Press and Pump • > Plates of the Filter Press are tested for casting defects before machining. • > Grinding process is done on the faces of Filter Plates to avid leakages at high pressure. • > Flat bars provided at the sides are designed to stand extra pressure. • > Accessories provided with filter press are petcocks, oil through, one rod and a spanner (for filter cloth nuts). • > Nut body is Steel fabricated which can hold high presure. • • Specification of Plate Type Filter Press Machines Size Weight of Filter Press(Kgs) Filtration Area (Sq. Mts) Capacity (Litres/Day) H. P No. Of Pistons Size of Plunger Pump 36″x36″x36 Plates 8,000 30 33,000 7.5 Single 100 mm 30″x30″x30 Plates 4,500 18 22,000 7.5 Single 80 mm 24″x24″x30 Plates 2,800 11 11,000 5 Single 60 mm 24″x24″x24 Plates 2,400 9 9,500 3 Single 60 mm 18″x18″x18 Plates 1,100 4 4,500 2 Single 40 mm 14″x14″x14 Plates 650 2 3,200 1 Single 30 mm 12″x12″x12 Plates 380 1.5 2000 1 Single 30 mm
Usage/Application - Filtration
Country of Origin - Made in India
Type Of Pump - Plunger Pump
Plate Size - 12" X 12" X 12
Filtration Capacity - 2000 L
Body Material - MS
Frequency - 50-60 Hz
Automation Grade - Automatic
Brand - Shree Ram Engineering Company
Voltage - 380 V
