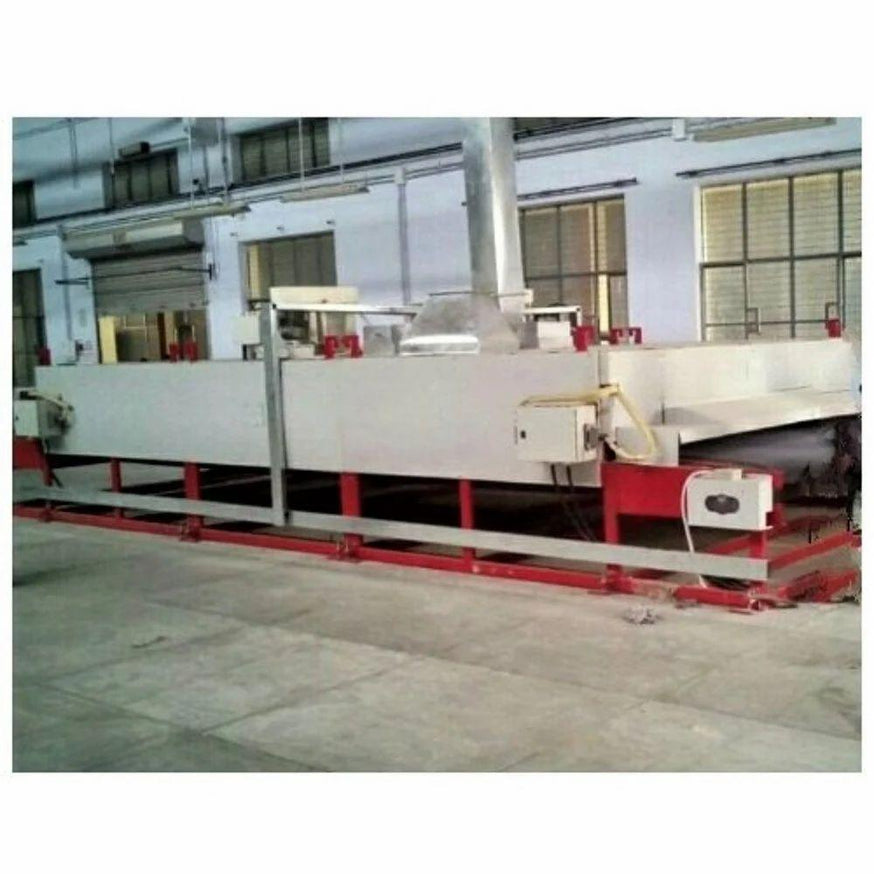

Application:- Litel Infra-red Dryer System for Preheating of carpets moisture reduction. Features of Litel IR carpet Dryer:- • Size of the object: - maximum 10’-00” ft width is heated by Litel’s heating system. • Maximum overall dimension of the Carpet is 14’-00” (L) (4300 mm) • Weight of the Carpet: - 1.5 kgs/sq. yard. The length of the Carpet shall be aligned with the Conveyor direction. Moisture Rates:- • Entry moisture: - 19% Exit moisture after IR processing: - 9% • Production rate: - The system is capable for a production level of 320kgs/hour considering thickness mainly around 20mm to 25mm. • Cooling section:- A provision for cooling zone is provided for comfortable operator handling. • Conveyor belt: - High temperature & durable belt. • Conveyor Size: - The size of the Conveyor is 30’-00” long and 10’ width fitted with Oven. However, the Conveyor is suitable for max. 10’-00” width Carpet. • Temperature: - 120 ± 10 Deg C Dimensions (Approx.) Overall length of conveyor: 8000 mm • Tunnel length: 6000 mm • Conveyor belt width: ??? 3300 mm Over all width with control panel:- 3800 mm • Voltage supply: 415 V 3 Φ AC. • Project Duration: - 12-16 weeks 100 % designed & manufactured in India.
Automation Grade - Manual
Minimum Order Quantity - 1 Number
Brand - Litel
Surface Finish - Litel
Material - IR
