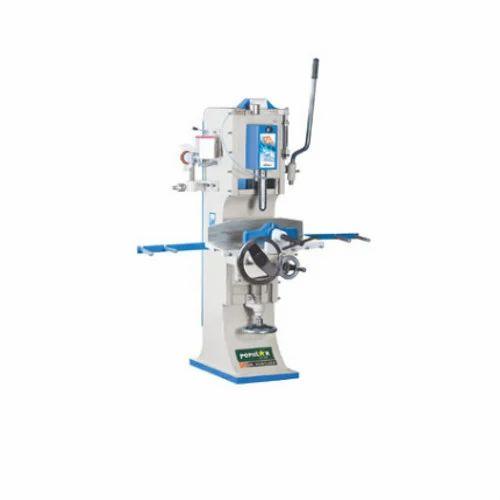

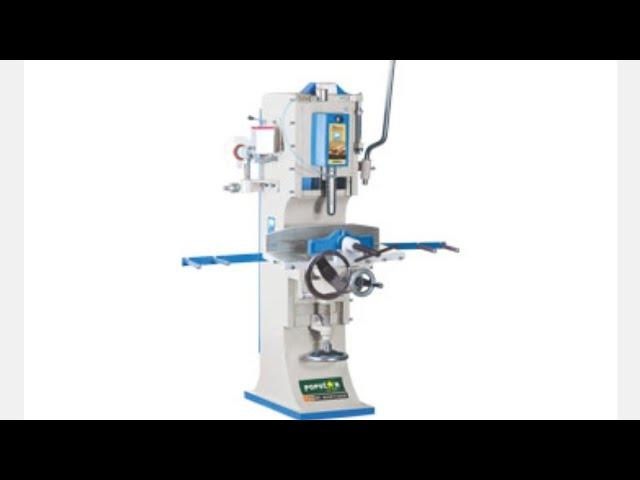

Heavy duty machine with specific chain tool makes chain mortising so easy for single component of rectangle slots. Standard Accessories • 1 no. electric motor of 2 HP/1440 RPM-3 phase • 1/2" chain set • R/F switch • Oil bowl • Grinding wheel & V-belt fitted in grinding attachment • Toolkit & m/c manual. Note • M/c with motor of 1.5 HP 1-phase at extra cost.
Up Down Movement of Table - 75 mm / 3 inch
Longitudinal Movement of Table - 305 mm / 12 inch
Table Size - 560 x 255 mm / 22 x 10 inch
Model No - J-930 (E)
Weight of Machine - 260 Kg
Power Required - 2 HP / 1440 rpm
Cross Movement of Table - 100 mm / 4 inch
Max Depth of Cut - 140 mm / 5 1/2 inch
