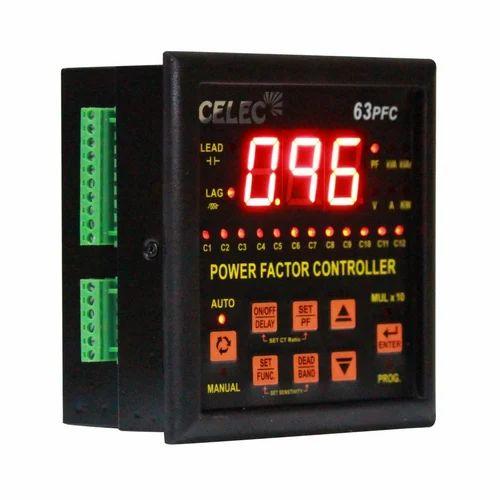

6 steps Power Factor Controller 240V 63PFC i s used, where the power factor load fluctuates greatly with variation. It check as shown above measurement of the power factor with set desired power factor and if it less than it gives the command to switch one step capacitor unit to get the desired set of power factor. if examined power factor is more than set value of power factor, then it gives the command to switch off connected capacitor steps until unless it reaches the desired set of power factor value. In the panel, capacitors are connect and disconnect automatically with the help of automatic power factor correction relay. APFC Relay use to automate capacitor bank and one of the most difficult roles in place where high and controlled amount of electricity is applicable. This includes large factories or industries or schools or colleges. APFC Relay is especially necessary for colleges; because students are learn on the basis of the various types of voltage and ampere fluctuations in practical labs. However, all relays cannot be to accurate and therefore, there is a need of a very accurate and precise control relay. Additional Information: • Item Code: 63-PFC-6-Channels • Packaging Details: Export worth packing.
Voltage Input - 240 VAC (110V,415V against order)
Frequency - 45 - 65 Hz
Current Input - 10mA to 5.00 Amp (Isolated)
No of Channels - 6
Minimum Order Quantity - 5 Piece
Relay Contacts - 7 Amp 250 VAC

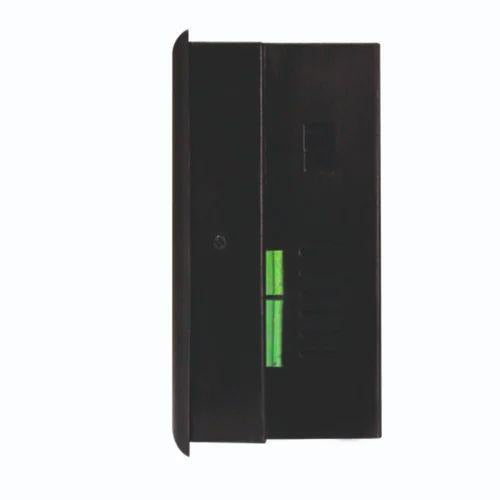

Dimensions - 144mm (W) x 144mm (H) x 67mm (D)
Switching Type - Binary FIFO
Bezel/Panel Cut Out - 90 mm x 90 mm +/- 1 mm
Ampere Sensitivity Setting - 1 to 20 A
CT Ratio Programming - Up to 2000 A
Power Factor Control Range - From 1% to 120% of rated current.
Weight - 1 Kg
Operating Temperature - 10 Degree to 70 DegreeC
Dead Band Setting - 0.01 - 0.20
Switching Time Setting On Delay - 1 to 60 seconds
Brand - Celec
Display Size - 1.00" LED Display
