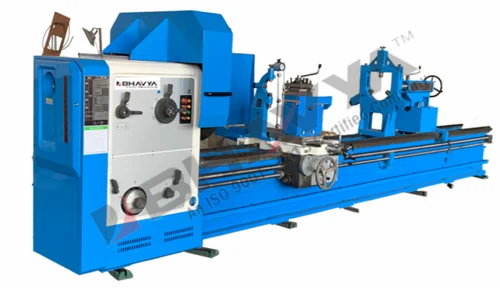

HST-H- Series has five models of extra heavy duty lathes consisting 21/12 no of spindle speed. This heavy duty lathe has 3 Jaw Chuck that holds an object having radial symmetry. Three- jaw chucks, used to hold bits in power drills, commonly used equipment for metal working lathes. Standard Accessories: • 3-Jaw Chuck • Heavy Duty Dog • ChuckSteady Rest • Follow Rest • Revolving Centre • Centre Sleeve • Tool Set • Foundation Bolt • Instruction Manual
Range of Inch Thread - 0.25-28 T.P.I
Maximum Turning Length - 4800 mm
Tail Stock Spindle Diameter - 180 mm
Distance Between Centre - 5000 mm
Cross Slide Travel - 950 mm
Floor Space - 7950 x 2240 x 2350 mm
Range of Metric Thread - 1-120 mm
Motor Power - 30 kW
Machine Weight - 16.6 Tons
Longitudinal Feed - 3.8 m/min
Tail Stock Spindle Travel - 300 mm
Number of Spindle Speeds - 21
Cross Feed - 1.8 m/min
Swing Over Bed - 1800 mm
Spindle Speed Range - 2.5-250 RPM
Bed Width - 970 mm
