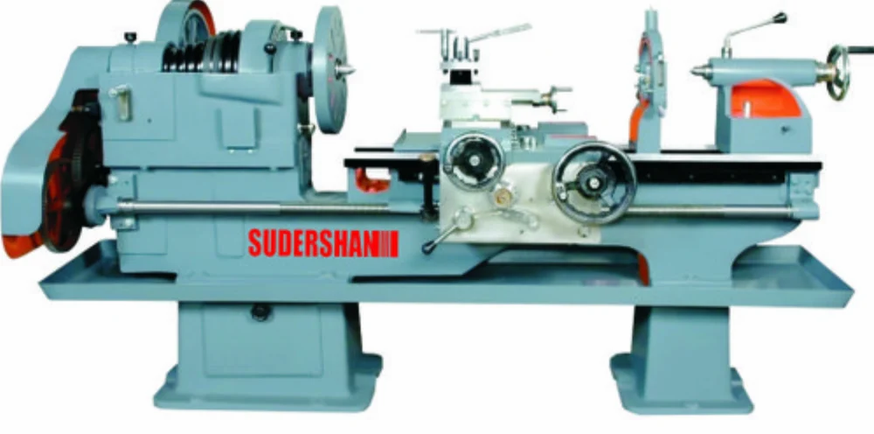

Heavy Duty Lathe Machines are one of the most extensively utilised lathe machines because of its high quality and rapid rate of output. These are made of high-quality iron and steel and are built to withstand the most difficult shaping chores. They are particularly well suited to high-volume production because to their high-performance capacity to work at fast speeds. Features: • Induction hardened bed guideways • Low Maintenance Design • Ergonomic Tail Stock Design • Highly balanced rotating Parts for precision Work • Heavy Legs for sturdy and Vibration Free performance We are ranked amongst the renowned organizations that are engaged in providing the best quality range of Heavy Duty Lathe Machines.

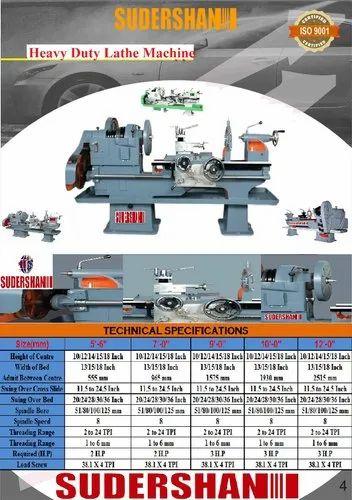

Range of Metric Thread - 1-6 mm
Range of Inch Thread - 2-24 T.P.I
Lead Screw Diameter - 38.1 mm
Bed Length - 5.6 Feet
Swing Over Cross Slide - 290 mm
Spindle Bore - 51 mm
Applicable Industry - Sugar Mills, Tool Room, Paper Mills
Distance Between Centre - 555 mm
Lead Screw Pitch - 4 T.P.I
Motor Power - 2 HP
Machine Type - Belt Driven Heavy Duty Lathe Machine
Bed Width - 330 mm
Height of Centre - 254 mm
Number of Spindle Speeds - 8
