Technical parameters: Function ItemBB-30NC Punching Max. Punching Force (KN) 300 Punching Diameter Range (MM) Ø4.3-Ø25 Max. Thickness (MM) 12 Max. Width (MM) 160 Shearing/Cutting Max. Shearing Thickness (MM) 12 Max. Shearing Width (MM) 160 Vertical Bending Max. Bending Force (KN) 300 Max. Thickness (MM) 12 Max. Width (MM) 160 Horizontal Bending Max. Thickness (MM) 12 Max. Width (MM) 100 Max. Angle (Degree) 90° Out Dimension MM 1750*1350*1420 Power KW 3*4kw Weight KG 1400kg CNC Precision Bending Precision ±1° Repeat Bending Precision ±0.3° Additional Information: • Item Code: BB-30NC • Pay Mode Terms: T/T (Bank Transfer) • Delivery Time: READY STOCK • Packaging Details: WOODEN BOX PACKING AVAILABLE AT MIN. COST
Cutting Capacity - Max. Shearing Thickness (MM) 12 Max. Shearing Width (MM) 150
Max Bending Radius - 160MM THICKNESS
Model Number - BB-30NC
Bending Material - COPPER & ALUMINIUM
Material - ALUMINIUM & COPPER

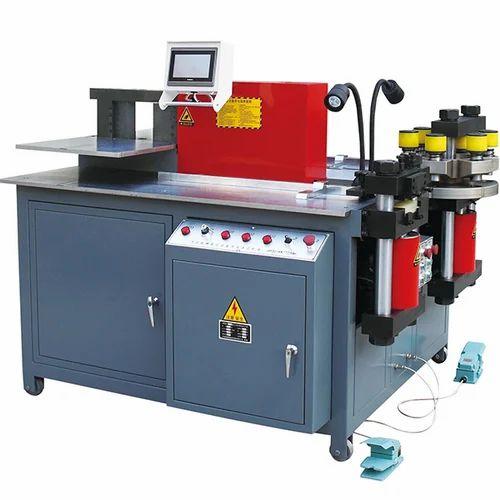

Usage/Application - ALUMINIUM & COPPER BUSBAR BENDING CUTTING & PUNCHING MACHINE
Power Source - 4KW
Minimum Order Quantity - 1 Piece
