V-Belt Extra Heavy Duty Lathe Machine Features: • The V-belt drive allows bringing good speed ratio in performance and obtains comparatively good speed in shaping and other possible types of machining operations. • It is a versatile and can be installed quite conveniently. • This machine is featured with excellent specifications that reduce the need for higher maintenance. • These instruments are also known for their sturdy construction as it is made from tested and approved materials to sustain for long duration production demands. • We have designed our equipment to support different workshop expectations in different industries. Standard Accessories: • Chuck Plate • Gear Set • Centre Adaptor • Dial Indicator • Square Tool Post • Tool Post Key Optional Accessories: • Steady Rest • Follow Rest • Face Plate Electrical Fittings • True Chuck & Dog Chuck • Quick Change Tool Post Tapper Turning Attachment • Coolant Pump with Tank & Fittings Machine Lamp • Rear Tool Post • Key way Milling Attachment • Tool Post Grinder

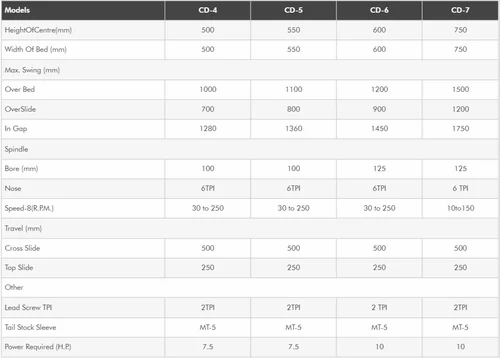

Spindle Bore - 125 mm

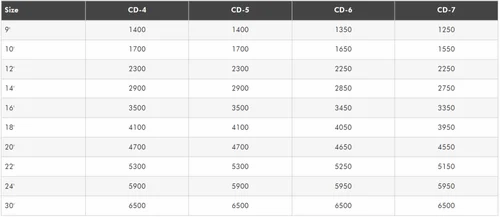

Distance Between Centre - 4650 mm
Cross Slide Travel - 500 mm
Maximum Swing in Gap - 1450 mm
Motor Power - 10 HP
Bed Length - 20 Feet
Applicable Industry - Oil Industry, Power Plant, Shipbuilding, Mining, Steel Rolling Mills
Height of Centre - 600 mm
Swing Over Bed - 1200 mm
Tail Stock Spindle Taper Bore - MT-5
Lead Screw Pitch - 2 T.P.I
Swing Over Cross Slide - 900 mm
Machine Type - Belt Driven Extra Heavy Duty Lathe Machine
Spindle Speed Range - 30-250 RPM
Bed Width - 600 mm
