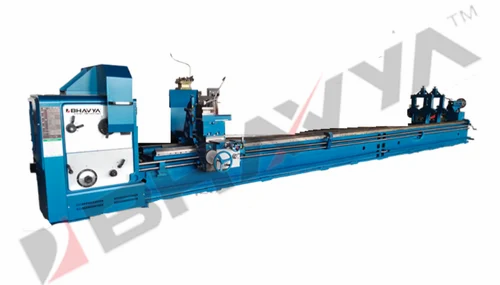

HST- MH Series- All Geared Lathe is heavy duty lathe. Their main specification of swing over bed is higher. Top slides individually function by power for cutting taper surface shorter. These machine have high rigidity. Extra Heavy Duty All Geared Lathe Machine It is a best combination of powerful machining with execution ease for extra heavy duty work that gives you complete freedom, cutting and drilling with power efficiency. It is applied in heavy industries and high end businesses where quality & quantity, both are main driving businesses like mining, shipping, power plant and paper industries. Standard Accessories: • 4 - Jaw Chuck • Steady Rest • Follow Rest • Revolving center • Coolant System • Machine Lamp • Instruction Manual • Tool kit Optional Accessories: • Chuck Guard • Splash guard • Tapper Turning • Attachment • Digital Readout • Thread chasing dial
Spindle Bore - 130 mm
Tail Stock Spindle Diameter - 160 mm
Distance Between Centre - 1500 mm
Cross Slide Travel - 580 mm
Maximum Swing in Gap - 1400 mm
Floor Space - 4450 x 1855 x 1780 mm
Range of Metric Thread - 1-120 mm
Motor Power - 30 HP
Machine Weight - 8500 kg
Longitudinal Feed - 0.1-12 mm/rev
Tail Stock Spindle Travel - 300 mm
Applicable Industry - Power Plant, Shipbuilding, Paper Mills, Mining
Number of Spindle Speeds - 21
Cross Feed - 0.05-6 mm/rev
Swing Over Bed - 1000 mm
Swing Over Cross Slide - 630 mm
Spindle Speed Range - 3.15-315 RPM
Bed Width - 755 mm
