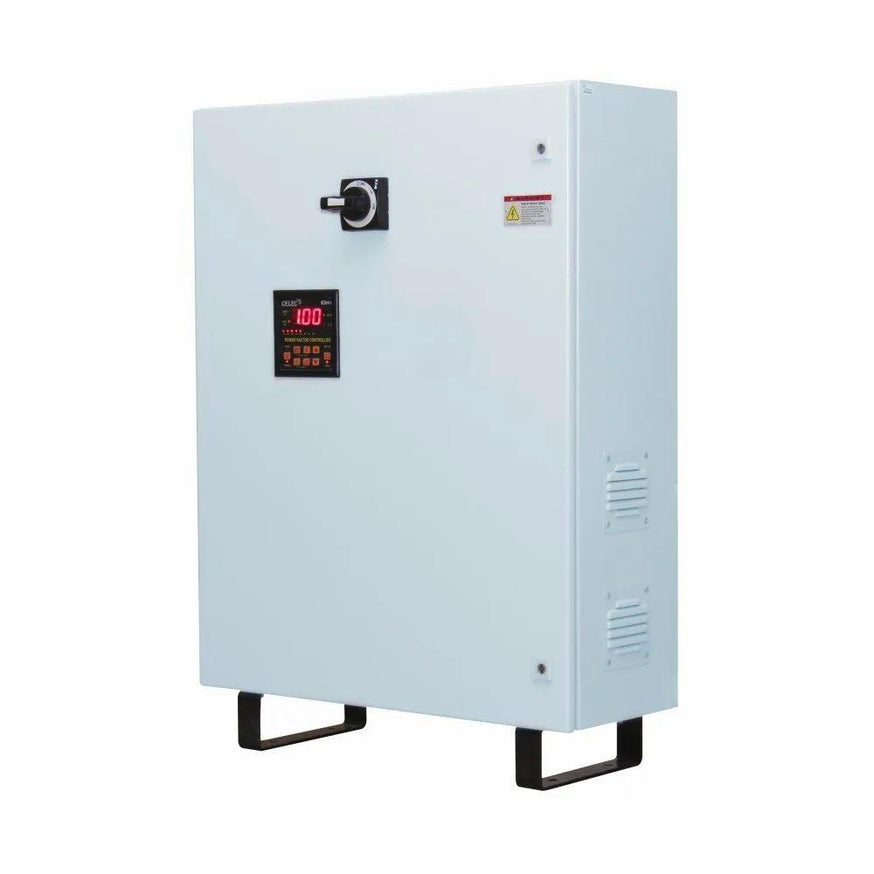

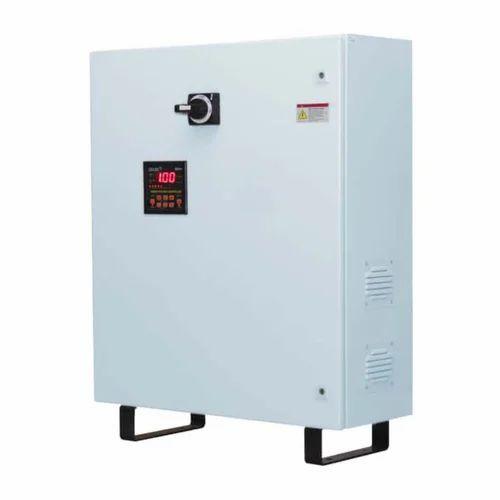

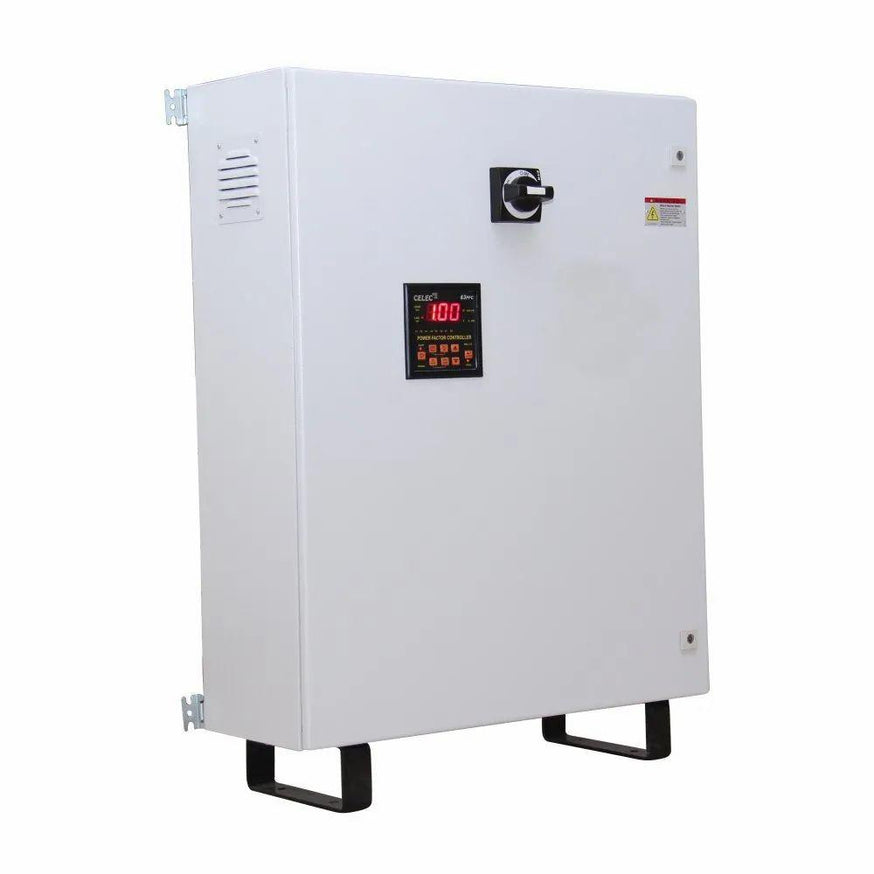

Celec E-150 Power Factor Control Panel 150 Kvar is Latest and high-efficiency electric power saving technology as well as it can provide effective protection for electricity appliances and Prolong their lifespan. Celec Electricity Saver device have been our forte for Power Saving Solutions. We have Core Competence in the measurement and intelligent control of power factor even during power quality disturbances. So Electricity Saving box, which yield in low-carbon emission and power factor correction. Apart from this Celec Power factor Correction is the first Indian Company UL-listed from USA. So Electricity saving Device understands power consumption and sets the capacitance saving level. Moreover Its energy consumption monitor allows energy use to optimized in real-time with a Bluetooth connection. This unit has designed for load fluctuations and maximizes in-phase energy. This intelligent monitoring increases potential energy savings at low and at peak energy demand levels. Electricity Saver can used in conjunction with renewable energy sources like Solar Panel, Wind Turbine and Inverters etc. Unique Features of 150 kvar 415V APFC Panel E-150: • Digital Display of Power Saving • Power Monitoring of All Electrical Parameters • Easy Installation and Pluggable Current Sensors • Power logger attachment against order How 150 kvar 415V APFC Panel E-150 Works:- • Power Factor Improvement • Reduced current on main line • Surge suppression for transient voltages • Filters input voltage from noise and impurity Additional Information: • Item Code: E-150 • Packaging Details: Export worth packing
Channel kVAr - 5,10,15,(20 x 6)
Full Load Current - 228 Amps.
Voltage - 440 / 380 V AC,50 Hz,3-phase
Power Rating - 150 kVAr
Minimum Order Quantity - 1 Unit
Applicable max load - 150 - 200 kW
Accuracy - 10 kVAr
No of Channels - 9
