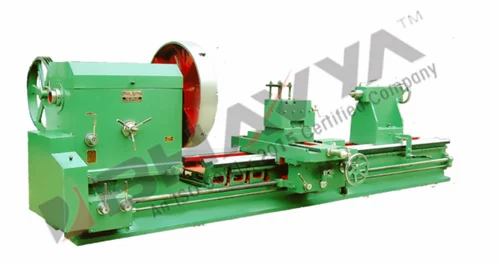

Bhavya Machine Tools offers various types of extra heavy duty lathe machine. They are designed to create objects that have symmetry about an axis of rotation. These tools are used for accurately machining comparatively hard materials. Our heavy duty equipments incorporate the latest technology to ensure improved performance. We offer flawlessly designed lathe machine with tight tolerances. They are compact and offer better value for money. These multipurpose machines feature simplicity, robustness and longer working life. We supply different models in various technical specifications. They are the ideal solution for a wide range of applications. They are used in power plants, steel rolling mills, tool rooms, ship building, repairing shops, oil, mining industries etc. Roll Turning Extra Heavy Duty Lathe Machine Features: • The Roll Turning drive allows bringing good speed ratio in performance and obtains comparatively good speed in shaping and other possible types of machining operations. • It is a versatile and can be installed quite conveniently. • This machine is featured with excellent specifications that reduce the need for higher maintenance. • These instruments are also known for their sturdy construction as it is made from tested and approved materials to sustain for long duration production demands. • We have designed our equipment to support different workshop expectations in different industries. Standard Accessories: • Chuck Plate • Gear Set • Centre Adaptor • Dial Indicator • Square Tool Post • Tool Post Key Optional Accessories: • Steady Rest • Follow Rest • Face Plate Electrical Fittings • True Chuck & Dog Chuck • Quick Change Tool Post Tapper Turning Attachment • Coolant Pump with Tank & Fittings Machine Lamp • Rear Tool Post • Key way Milling Attachment • Tool Post Grinder

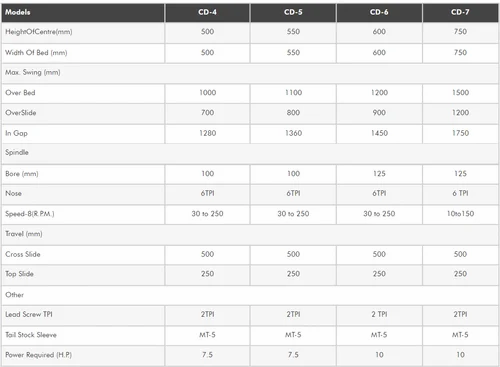

Spindle Bore - 100 mm
Distance Between Centre - 2300 mm
Cross Slide Travel - 500 mm
Maximum Swing in Gap - 1280 mm
Motor Power - 7.5 HP
Bed Length - 12 Feet
Applicable Industry - Steel Rolling Mills, Shipbuilding, Mining, Tool Room, Oil Industry, Power Plant
Height of Centre - 500 mm
Swing Over Bed - 1000 mm
Tail Stock Spindle Taper Bore - MT-5
Lead Screw Pitch - 2 T.P.I
Swing Over Cross Slide - 700 mm
Bed Width - 500 mm
