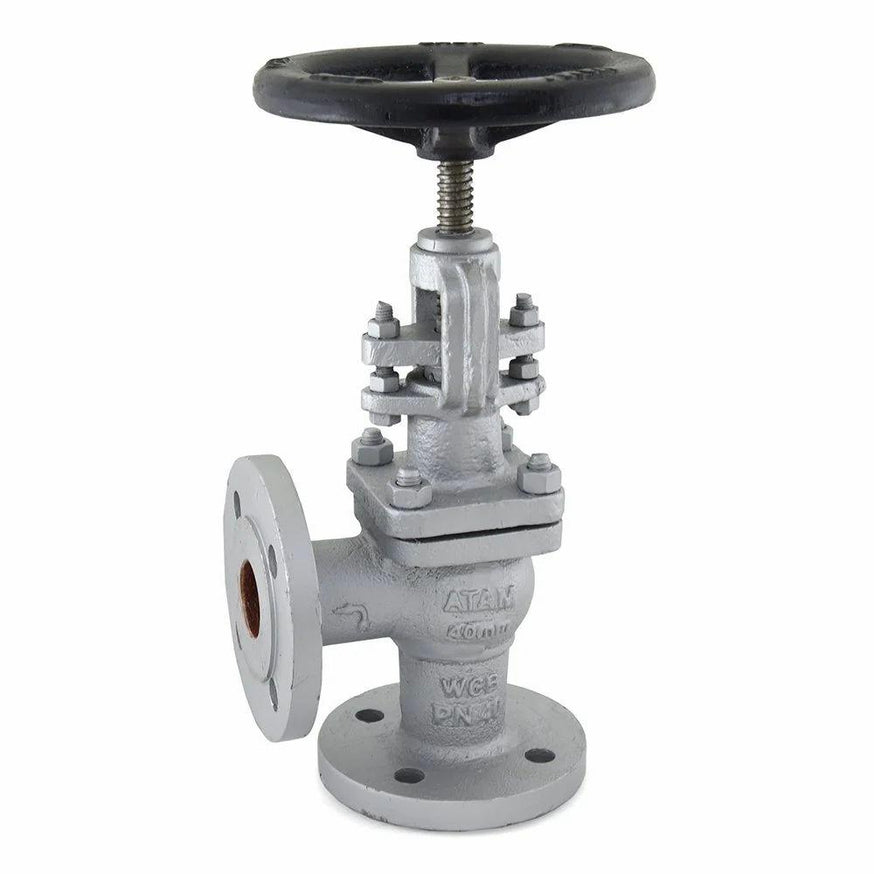

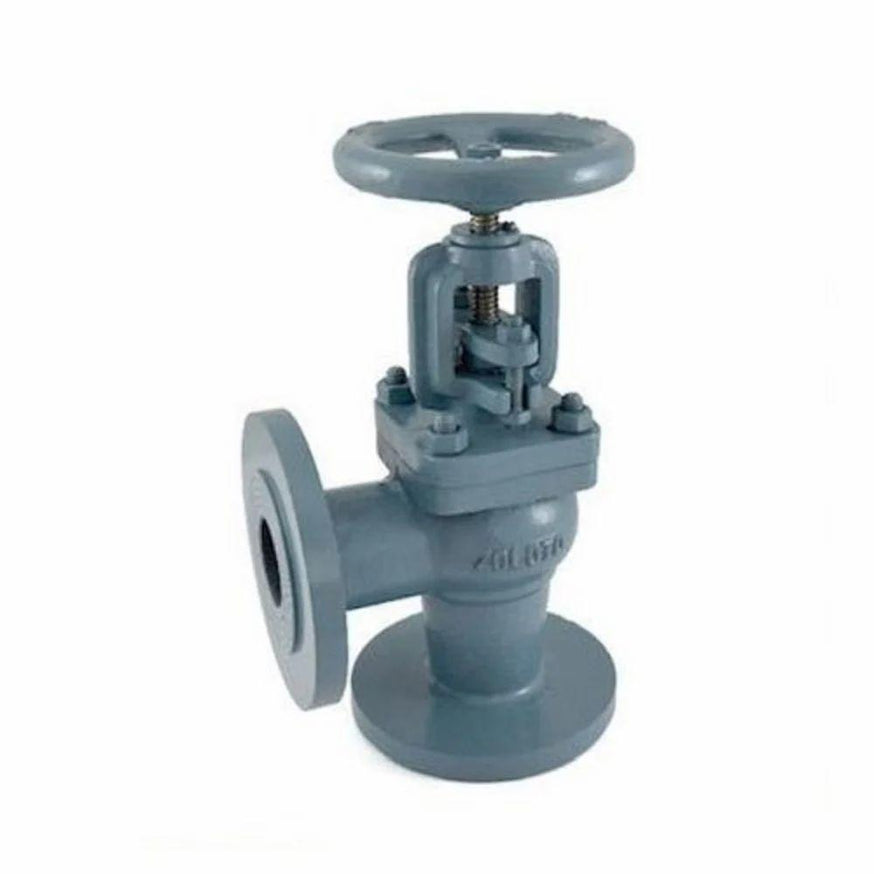

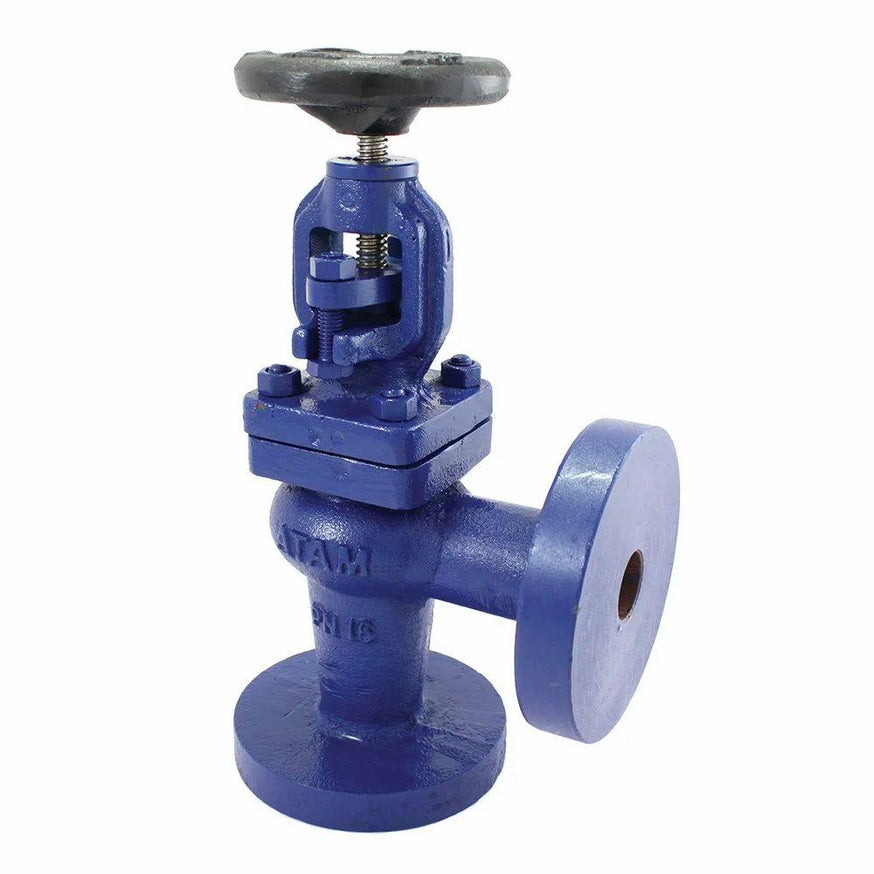

Salient Features • Flanged Ends to DIN 2533 PN 16RF. • Angle Pattern, Outside Screw, Yoke Type, Rising Stem. • Renewable 13% Cr. Stainless Steel (S. S 410) working parts. • Provision for re-packing under pressure. • Minimum pressure drop inside the body due to streamlined body design. • High lift of the seat to avoid any obstruction in the flow. • Sturdy and comparatively bigger sized wheel provided to give sufficient torque for easy operation.
Brand - Zoloto
Temperature - 220 Degree C (Max)
Size - 15 MM
Pressure - 13 kg/cm2g (185 psig) (Steam)
Material - Cast Iron
