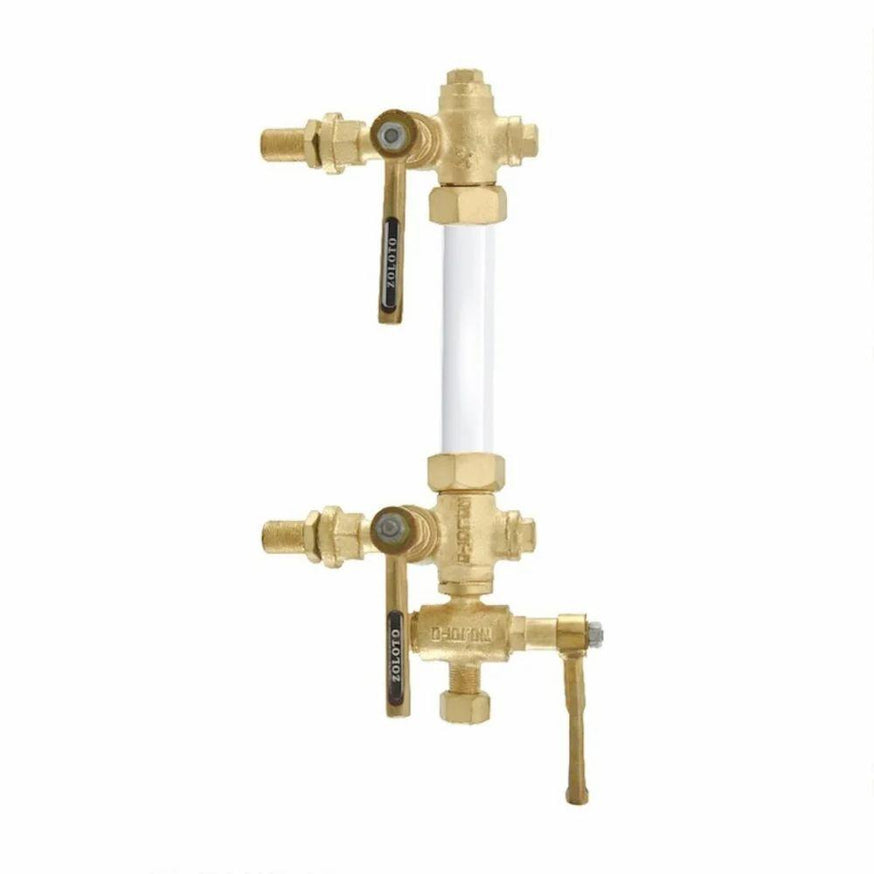

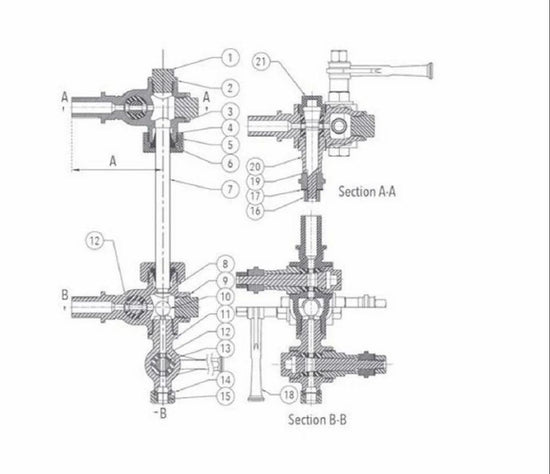

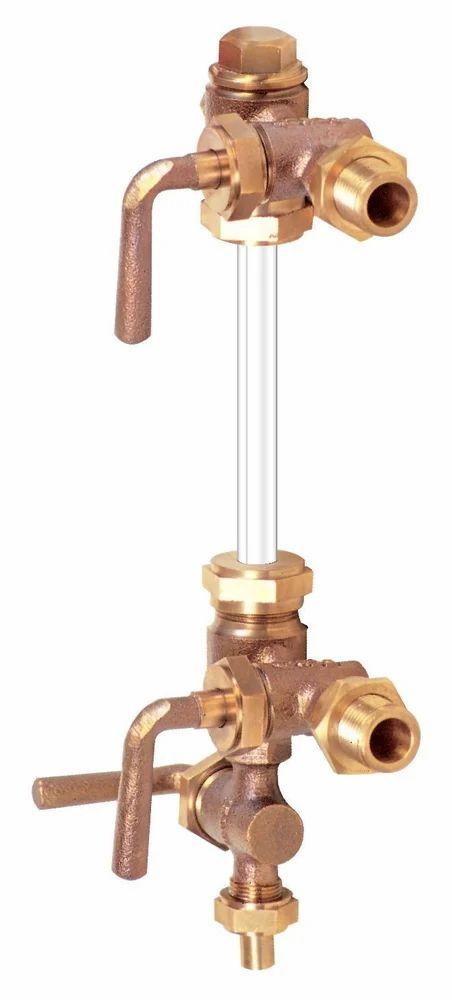

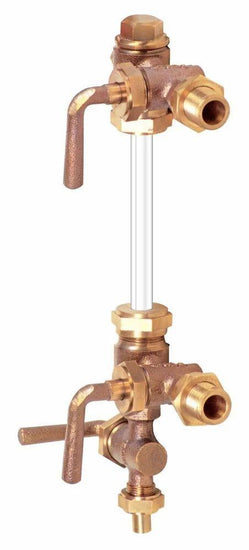

Salient Features: • Screwed Male End to BSP. • Automatic Shut Off Device in Water Arm. • Set available for both, Right Hand and Left Hand operations. • Premium Quality Sleeve, Reinforced by metallic eye holes provided to avoid any clogging of passage. • Each piece is fitted with self adjusting inverted taper plug (Stainless Steel) which forms a seal in the renewable moulded asbestos sleeve. • Sleeve can easily be positioned by a rib which fits in the corresponding groove of the body. Material Specifications: P. No. Name of Part Material of Construction Specification Quantity 1 Plug Bronze IBR 282 (a) (iv) Gr. B 2 2 Gasket Steam Jointing Sheet IS 2712 Gr. W/3 4 3 Upper Arm Bronze IBR 282 (a) (iv) Gr. B 1 4 Cone Synthetic Rubber IS 5192-1 2 5 Nut Bronze IBR 282 (a) (iv) Gr. B 2 6 Washer Bronze IBR 282 (a) (iv) Gr. B 2 7 Glass Tube* Toughened Glass – – – 1 8 Lower Arm Bronze IBR 282 (a) (iv) Gr. B 1 9 Plug Bronze IBR 282 (a) (iv) Gr. B 1 10 Ball Stainless Steel ASTM A 276 Type 304 1 11 Drain Valve Bronze IBR 282 (a) (iv) Gr. B 1 12 Sleeve Bush Bronze IBR 282 (a) (iv) Gr. B 6 13 Sleeve Moulded Asbestos – – – 3 14 Union Nut Bronze IBR 282 (a) (iv) Gr. B 1 15 Nipple Bronze IBR 282 (a) (iv) Gr. B 1 16 Nut Carbon Steel – – – 3 17 Name Plate Brass / Aluminium – – – 3 18 Handle Bronze IBR 282 (a) (iv) Gr. B 3 19 Stem Stainless Steel ASTM A 276 Type 410 3 20 Bonnet Bronze IBR 282 (a) (iv) Gr. B 3 21 Lock Nut Bronze IBR 282 (a) (iv) Gr. B 3
Brand - Zoloto
Size - 15 mm
Working Pressure (Steam) - 17.58 kg/cm2g (250 psig)
Model Name/Number - 1049
Glass Material - Borosilicate
Application - Chemical Industries
Process Connection - Screwed
Fluid Type - Water
Working Temperature - 225 Degree C (Max)
Material - Bronze
