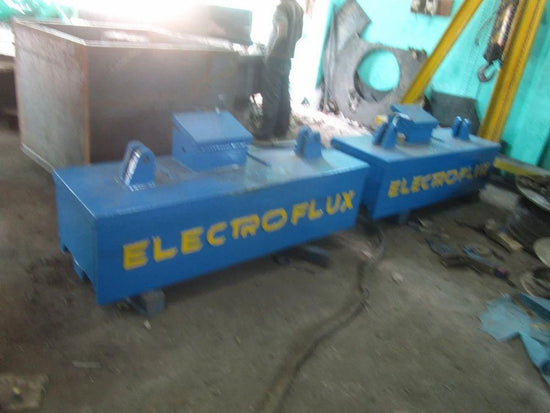

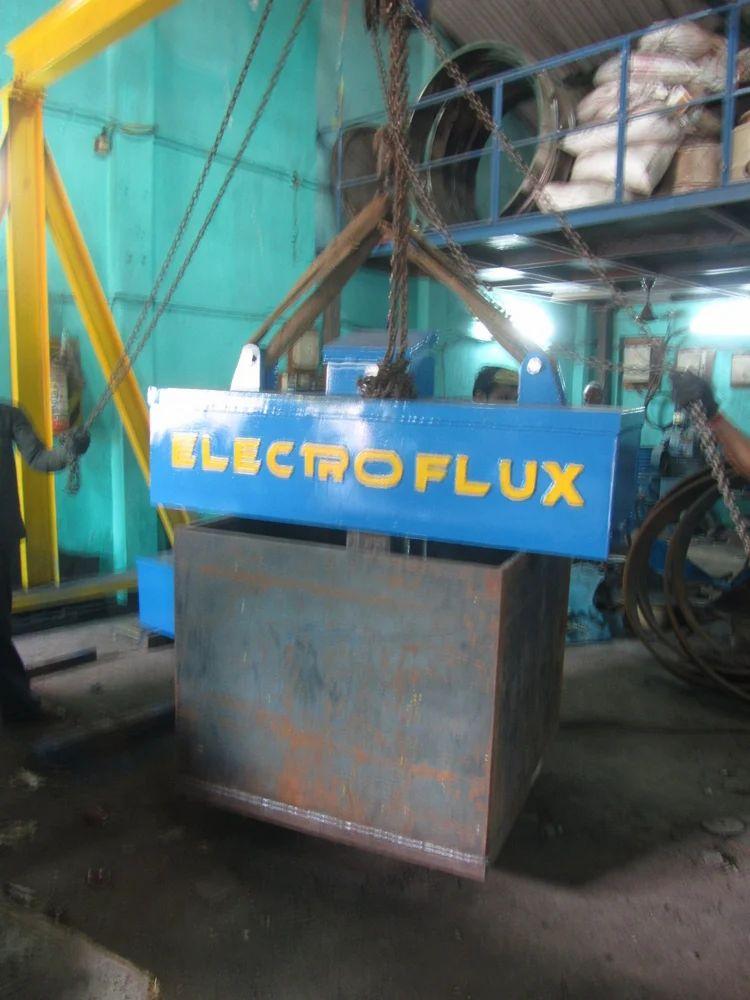

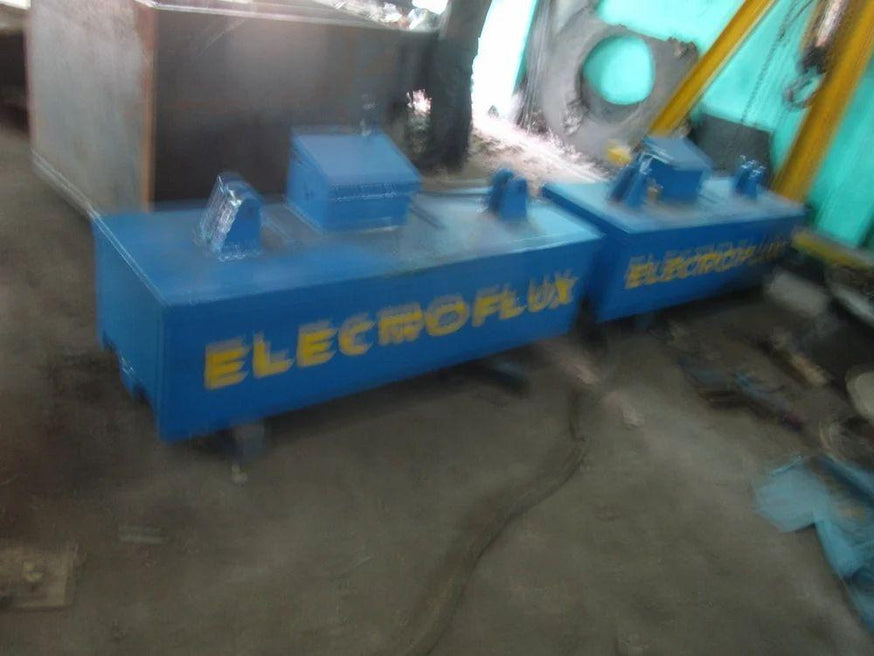

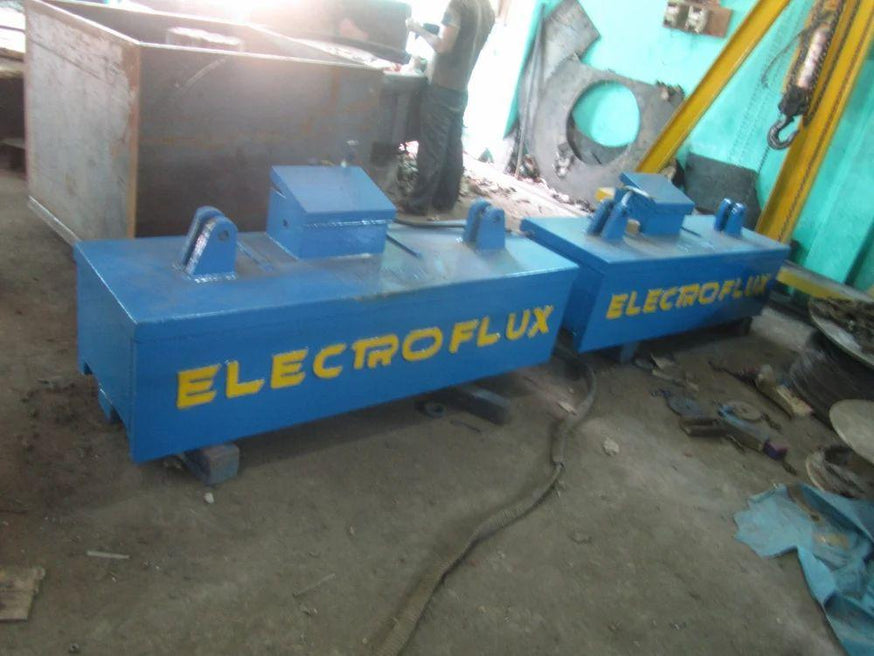

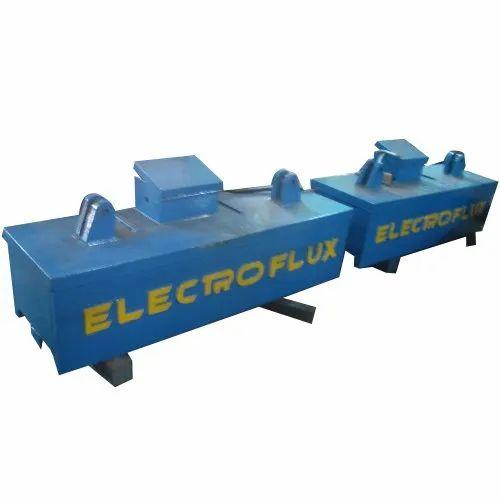

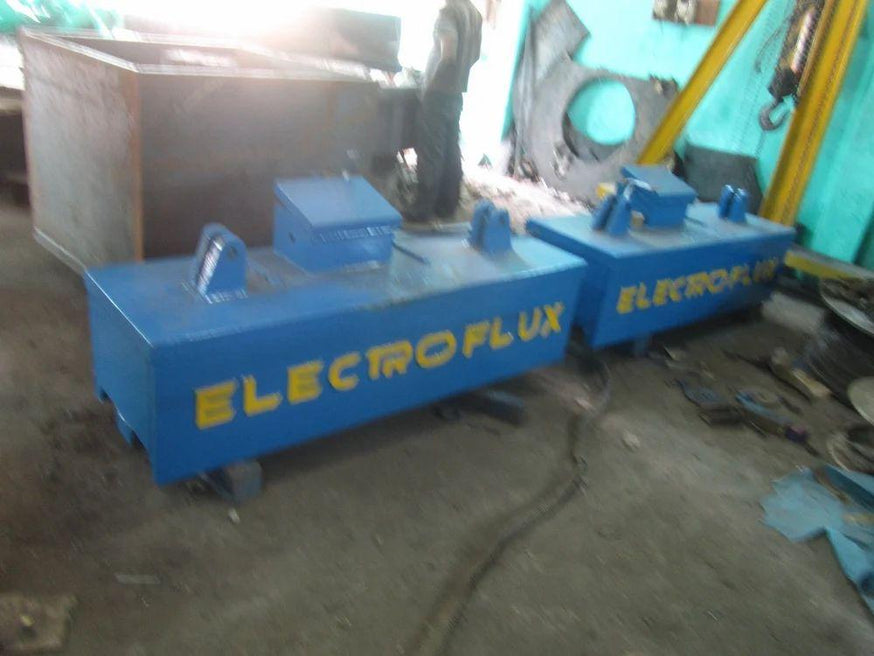

1000 x 400 x 350mm Rectangular Electro Lifting Magnet, Rectangular Load Lifting Magnet are mainly used to lift heavy sheets, plates, rounds or square bars, bundles, billets, ingots and many similar applications, in shipyards, steel mills, and foundries. The rectangular lifting magnet makes direct contact with the surface, as a gap as little as 1 mm can cause a 50% reduction in lifting capacity. These magnets can be used individually or in multiples with different types of suspension systems. The correct choice of system depends on the following factors: • The structure and function of the crane • The type of traverse fitted • The shape and surface of the material to be lifted
Colour - Blue
Type Of Magnet Used - Electro Lifting Magnet
Power - 2.5 kW
Material - Neodymium
Applications - Heavy Duty Lifting
Voltage - 110 Volts
Thickness (mm) - 350 mm
Brand - Electro Flux
Shape - Rectangle
Dimensions (mm) - 1000 x 400 mm
Country Of Origin - Made In India
Self Weight (Kg) - 700 Kg
