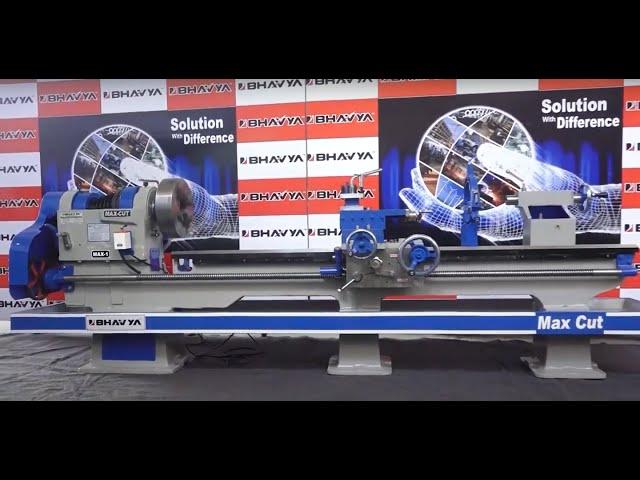

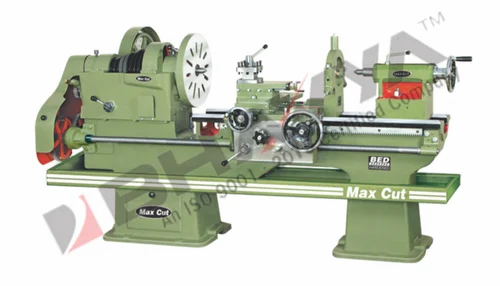

Heavy Duty V-Belt Drive Lathe Machine - Max SeriesFeatures: • Our V-belt drive Heavy duty lathe machine is the perfect machining equipment for handling hard materials and it is a space saving workshop equipment. • We have created this equipment considering the smart aspects in technology to offer consumers with the best machining experience. • It also stays precise, fast, reliable and consistent. • The V-belt provision allows for accuracy in shaping metals and other types of work materials. • It keeps the work material from slipping off from the machining platform. • It offers comparatively speedy performance apart from precise mechanism. • Machining aspects are excellent as it is vibration free and requires lesser time and man power for operating and maintenance. Standard Accessories: • Chuck Plate • Gear Set • Centre Adaptor • Dead Centres • Dial Indicator • Square Tool Post • Tool Post Key Optional Accessories: • Steady Rest • Follow Rest • Rear Tool Post • Norton Gear Box • Machine Lamp • Face Plate • Electrical Fitting • True Chuck & Dog Chuck • Key Way Milling Attachment • Tool Post Grinder • Quick Change Tool Post • Turning Attachment • Coolant Pump with Tank & Fittings

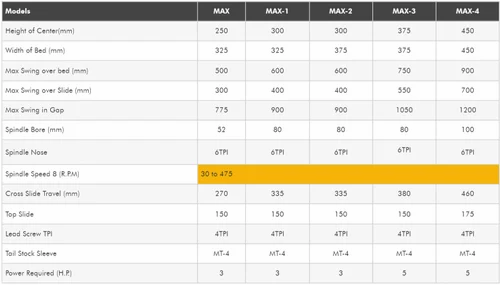

Motor Power - 3 HP
Bed Length - 10 Feet
Cross Slide Travel - 335 mm
Swing Over Bed - 600 mm
Tail Stock Spindle Taper Bore - MT-4
Spindle Bore - 80 mm
Bed Width - 325 mm
Lead Screw Pitch - 4 T.P.I
Maximum Swing in Gap - 900 mm
Swing Over Cross Slide - 400 mm
Machine Type - Belt Driven Heavy Duty Lathe Machine
Spindle Speed Range - 30-475 RPM
Number of Spindle Speeds - 8
Height of Centre - 300 mm

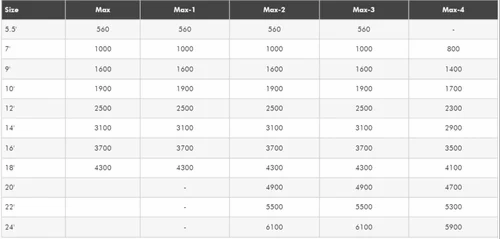

Distance Between Centre - 1900 mm
